CONSTRUCTION UPDATE
Ground Breaking
Floor
Slab
Tilt
Walls
Steel Structure
& Deck
Roof
Complete
Site
Paving
Construction
Complete

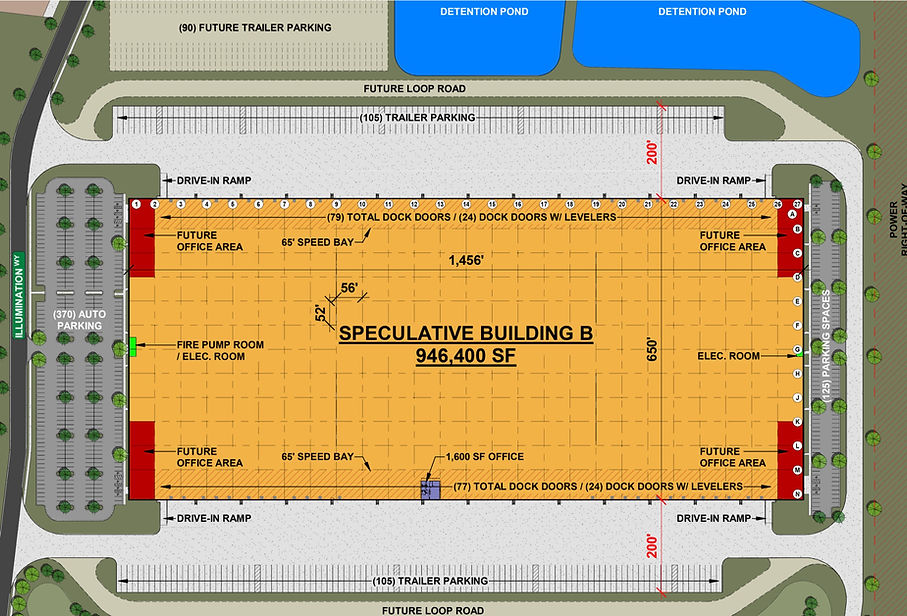

BUILDING SPECIFICATIONS
Building Type
Building Size
SF Available
Office SF
Site Size
Clear Height
Column Spacing
Bay Size
Walls
Roof
Zoning
Interior Lighting
Electrical
Fire Protection
Floor Slab
Docks
Drive-in Doors
Truck Court & HD Drive Aisles
Trailer Parking
Car Parking
Net Lease Rate
Estimated Op.Ex.
Tax Abatement
Industrial/Warehouse
946,400 SF (1,456’ x 650’)
Up to 946,400 SF
1,600 ± SF spec office
83 ± acres
Minimum 40’ clear height, at the first bay column
56’ x 65’ speed bay; 56’ x 52’ interior bay
36,400 SF
Exterior walls painted tilt-up concrete, load bearing wall panels. Interior walls to have thermal insulation
60 mil, white, mechanically fastened TPO membrane system with R-25 insulation with twenty (20) year NDL warranty
PM (Planned Manufacturing) - City of Pataskala
Fixtures will be Aluminum body LED high bay fixtures, designed for 25 FC open floor storage throughout building. Includes 36 K lumen, rated life (L70 – 70% output) greater than 170,000 hours, with motion sensors
4,000 AMPS Total / 2 locations (2) 2,000A main switch gear at each end of the building. Building
to have conduits to accommodate an additional 2000 AMPS on each end of the building
ESFR fire protection system. System to utilize 50 PSI, K-25 heads. Includes a 2500 GPM, 300 HP diesel fire pump. Interior Fire Pump House
8” 4000 PSI concrete slab atop 6 inches of stone
156 (9’x10’) dock doors 48 of the 156 doors will be equipped with 40,000 lb levelers, dock seals, dock light, and fan
4 (12’ x 14’) drive-in doors
The court will have a total depth of 200’ and constructed with 6-inch-thick 4000 psi unreinforced concrete; 12” high back curbs installed in truck court
210 trailer parking stalls will be available; 90 future trailer parking; 300 total parking
370 Base Building Main Entrance Parking; 125 Base Building Secondary Entrance Parking; 495 Base Building Parking; 495 Total Parking which includes base building and future parking
Market rents
$0.55/SF
15 year, 100% tax abatement on real property improvements
